Product Details
The Peripheral Sensor Interface (PSI5) is an interface for automotive sensor applications. PSI5 is an open standard based on existing sensor interfaces for peripheral airbag sensors, already proven in millions of airbag systems. The technical characteristics, the low implementation overhead, as well as the attractive cost make the PSI5 also suitable for many other automotive sensor applications.
As part of product validation, it’s important to validate the product’s conformance against the protocol specification to ensure the interoperability of the product. As the complexity of the protocol and product increases, the validation time of the protocol interfaces also increases, which in turn reduces the RTM. Performing the protocol conformance testing traditionally needs a lot of time and effort.
Soliton’s PSI5 Sensor Protocol Validation Tool is an out-of-the-box validation tool using NI’s PXI Platform, which helps to validate the devices’ compliance with the timing and electrical specifications of the PSI5 protocol. The tool can also validate the device's tolerance and provide a comprehensive set of reports. Users have claimedthat, using this automated solution for PSI5 Sensor Protocol Validation has brought down the test time/validation time from a few days to a few hours.

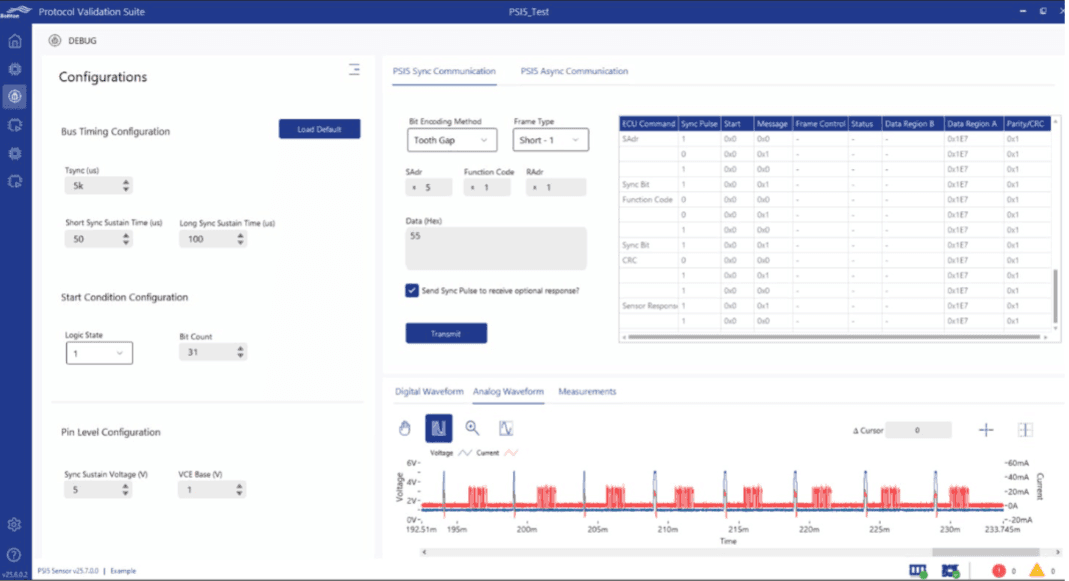

Peek and Poke GUI for interactive debug of the PSI5 interface. This helps to exercising and debugging the PSI5 communication manually. User can configure any allowed timing/voltage parameters to debug the transactions.
Technical Documentation
Soliton’s PSI5 Sensor Validation Suite is an off the shelf validation tool using NI’s PXI Platform, which helps to validate the devices’ compliance with timing and electrical specifications of the PSI5 protocol. It contains the below components.
PXIe-4139 – High-precision source measure unit with the PXIe Chassis setup
Oscilloscope – For performing voltage measurements
Soliton PSI5 Sensor Validation Suite Software compatible with Windows OS (Win 10)
Hardware
Soliton’s PSI5 Sensor Validation suite is based on the NI – PXI Platform and the below NI part configuration lists the hardware required to perform the validation
Support & Training
For any queries, contact us at [email protected]. We will respond within 1 business day.
*Please note that this product is in the alpha stage.
User Persona
Design Engineers, Test Engineers, Post Silicon Validation Engineers, Engineering Managers, Validation Managers, Lab Managers, etc. from the Semiconductor Industry.
Typical User Base for PSI5 Sensor Validation Suite
- Post Silicon validation of Chips with PSI5 interface
- Semiconductor Chip Manufacturers making PSI5 Devices
- Product Manufactures making products with PSI5 interface
