Product Details
LIN (Local Interconnect Network) is a low-cost single-wire serial networking standard for connecting intelligent devices and is most popular in the automotive industry, where it enables communication between vehicle components.
As a part of product validation, it’s important to validate the product’s conformance against the protocol specification to ensure the interoperability of the product. As the complexity of the protocol and product increases, validation time of the protocol interfaces also increases which in turn reduces the RTM. Performing the protocol conformance testing in traditional way needs lot of time and effort.

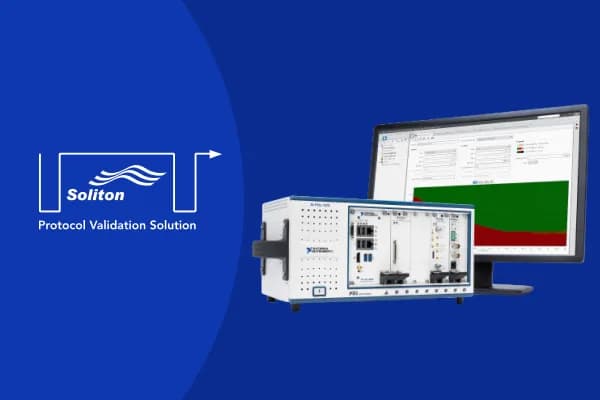

Soliton’s LIN Protocol Validation Tool is an off the shelf validation tool using NI’s PXI Platform, which helps to validate the devices’ compliance with timing and electrical specifications of the LIN protocol. The tool can also validate the devices tolerance to and recovery from a variety of LIN faults & exceptions and provides a comprehensive set of reports. Users have claimed that, using this automated solution for LIN Protocol Validation has brought down the test time/ validation time from few days to few hours.
Technical Documentation
Soliton’s LIN Validation Suite is an off the shelf validation tool using NI’s PXI Platform, which helps to validate the devices’ compliance with timing and electrical specifications of the LIN protocol. It contains the below components.
- NI PXIe 657x – Digital Pattern Generation Card with the PXIe Chassis setup
- Oscilloscope – For performing voltage measurements
- Soliton LIN Validation Suite Software compatible with Windows OS (Win 10)
Hardware
Soliton’s LIN Validation suite is based on the NI – PXI Platform, and the below NI part configuration lists the hardware required to perform the validation
Support & Training
For any queries, contact us at [email protected]. We will respond within 1 Business day.
TYPICAL USER BASE FOR LIN VALIDATION SUITE
- Design Engineers, Test Engineers, Post Silicon Validation Engineers, Engineering Managers, Validation Managers, Lab Managers etc. from the Semiconductor Industry.
- Post Silicon validation of Chips with LIN interface
- Semiconductor Chip Manufacturers making LIN Devices
- Product Manufacturers making products with LIN interface
